Editions & operating modes

Leoflow ships in two editions that share the same engine, the same Airflow-3.2.x UI, and the same DAG format (dag.py + leoflow.yaml): Lite (the full control plane on one host — laptop, VM, or internal server) and Pro (Helm-installed on Kubernetes). You author a DAG once and it runs on either. A third, contributor-facing Demo mode is a production-shaped reference environment used to validate UI compatibility — it is not an end-user surface.

Editions at a glance (packaging & posture)

Runtime modes (Lite · Pro · Demo)

This is the runtime details view — exact ports, database names, cluster names, and CLI surface per mode.

Leoflow Lite

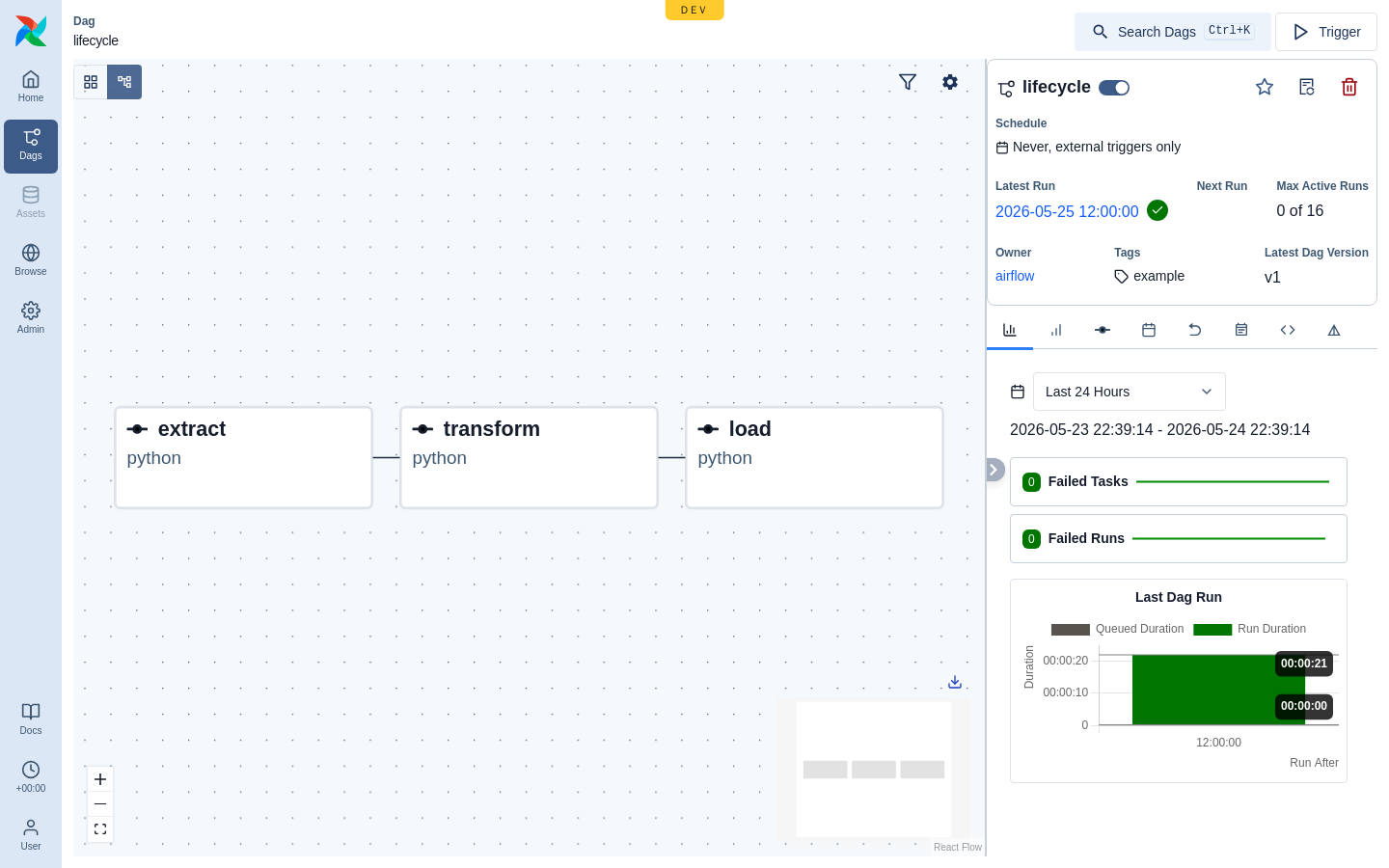

Lite is the whole control plane on your machine, scoped down for local use. One command installs it, leoflow setup provisions a managed Python and a single admin, and leoflow lite <project> serves the UI with hot-reload at http://localhost:8088 (marked Leoflow Lite in the navbar, login enabled). Edit dags/<project>/dag.py or leoflow.yaml, save, and it hot-reloads — fully isolated from Demo (own DB, own cluster, own ports) so there is no split brain.

• leoflow doctor — check the host (OS, Docker/k3d/kubectl/python3) and report the achievable executor tier.
• leoflow lite dags/hello — run a project (k8s executor: real k3d pods).
• leoflow lite --executor=subprocess dags/hello — fast host loop (no image build).
• leoflow db migrate|reset — manage the Lite database (Airflow-style).

It is deliberately simple, which has security implications:

Lite also includes a small built-in web editor (Monaco, with Python/YAML highlighting) so you can edit DAG projects from the browser — a Lite-only convenience; Pro teams use their own editor and the GitOps flow.

The Dev → Lite rename is a product/branding change — the internal storage names (leoflow_dev database, leoflow-dev k3d cluster) are preserved so existing installs upgrade in place.

Datastore (auto-selected), no Redis

Lite’s datastore is Postgres, chosen automatically for the host: when Docker is present it uses the postgres:16 container; when it is not, it falls back to an embedded managed Postgres (a pinned, checksum-verified relocatable build downloaded under ~/.leoflow, on a local Unix socket) — so leoflow lite runs on a Docker-free host with nothing to install. (Force either with --postgres docker|managed.)

Either way Lite needs no Redis — scheduler locks use Postgres advisory locks and XCom is stored in Postgres. The Postgres-backed XCom is durable (it survives a restart), which suits light production, and a single datastore is simpler to operate; Redis is a production-scale concern. (See ADR 0026.)

For task execution, the k3d path runs real pods and therefore requires Docker to host the cluster — but Docker is only the substrate of k3d, never an executor: Lite talks to the Kubernetes API, and a Docker-socket executor was rejected because it is equivalent to host root. subprocess runs tasks directly on the host (no Docker, no isolation) as an explicitly dev-only escape hatch. (See ADR 0027.)

Leoflow Pro (chart-installable)

Pro is the enterprise control plane: enterprise authentication (SSO/OIDC), full role-based access control, multi-tenant isolation, the Kubernetes executor at scale, first-class observability, and the GitOps deploy flow (DAGs as immutable images + dag.json, shipped from CI). The Helm chart is Helm-installable and in active validation — tested against GKE, not yet certified for production. Pin a specific tag and read the release notes before upgrading (pre-1.0, breaking changes ship between minor versions with a migration note, ADR 0037).

Install via the Helm chart (chart-test gated, multi-arch images published per release, signed with cosign). Hardening templates ship as opt-in toggles: HPA + PDB + NetworkPolicy + ServiceMonitor. Runs on any K8s cluster with external Postgres + Redis.

Deployment topology (role split)

Pro can run the control plane as one process or split into two deployments by server.role (ADR 0049). Lite is always role=all. Splitting lets the internet-facing API run under least-privilege RBAC while only the scheduler holds pod-create and agent-facing rights; the two halves share nothing but Postgres.

flowchart TB
  subgraph LITE["Lite · role=all — one process"]
    ALL["leoflow-server<br/>API + UI + scheduler<br/>+ dispatch + agent gRPC"]
  end

  subgraph PRO["Pro · role=api + role=scheduler — two deployments"]
    direction LR
    subgraph D1["Deployment: role=api (restricted)"]
      APIP["API + UI<br/>internet-facing"]
      RB1["ServiceAccount<br/>least-privilege RBAC<br/>(no pod create,<br/>no agent gRPC)"]
    end
    subgraph D2["Deployment: role=scheduler (privileged)"]
      SCHP["scheduler + dispatch<br/>reconciler + agent gRPC"]
      RB2["ServiceAccount<br/>pod create/delete<br/>+ TokenReview"]
    end
    APIP --- PGP[("Postgres<br/>shared state")]
    SCHP --- PGP
  end

See the architecture overview for how the roles sit in the whole system.

Demo (contributor reference)

The familiar, production-like environment for contributors to validate the Airflow-UI compatibility and showcase the product. It serves frozen artifacts — to change a DAG you leoflow compile + leoflow push. Auth is on; log in normally. Demo is the target for UI compatibility work and is referenced from the contributing guide.

Which one? (recommendation)

Choose by deployment, not by feature checklist:

• Choose Lite when you run on one machine (laptop, a small VM, an internal box), want a one-command, Docker-free install, and your workload is local development, a small project, or light production on a trusted/internal network. Lite goes from zero-dependency (subprocess) to real pod-per-task (k3d) on the same binary, with a durable embedded Postgres.
• Choose Pro when you need Kubernetes at scale, a team (SSO/OIDC + RBAC + multi-tenant), high XCom throughput, external managed datastores, and the GitOps deploy flow — delivered as the Helm chart.

Rule of thumb: if it fits on one host and the network is trusted, Lite is enough; when you need a cluster, multiple users, or scale, that’s Pro. Because both editions share the DAG format, the engine, and the UI, a DAG authored on Lite carries straight over to Pro unchanged — going from a single host to a cluster is a deployment change, not a DAG rewrite.
