Case study: 1 GB ETL on staging

A worked, measured end-to-end pipeline: generate ~1 GB, process it with DuckDB, and load the result into an external Postgres — all on leoflow lite running real pods on a single-node k3d cluster (a “pseudo-cluster” on a laptop). Every number below was measured on that setup.

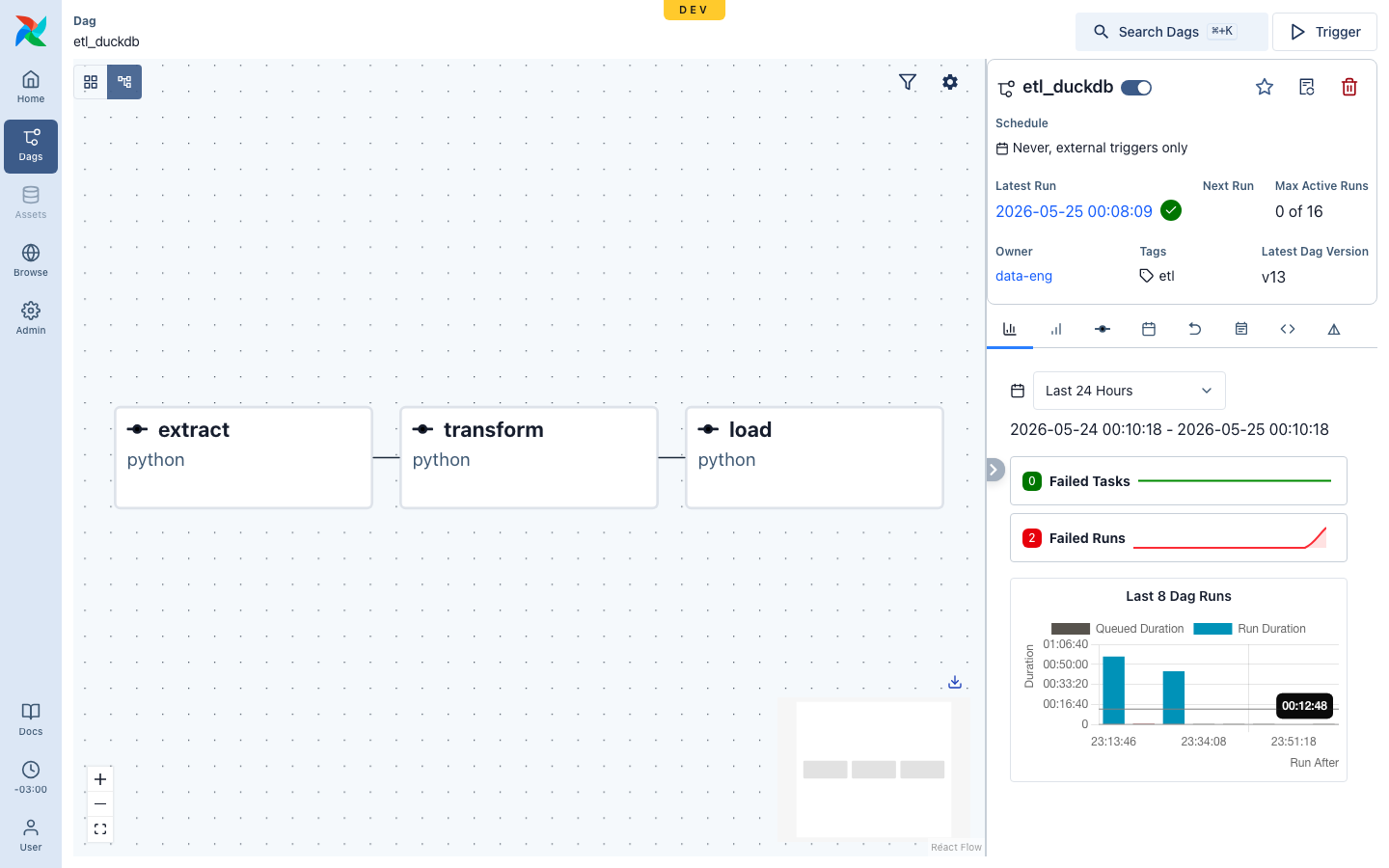

The pipeline

Three tasks, each in its own pod, sharing one /staging volume for the run. XCom carries only small paths/metadata; the GBs live on /staging.

flowchart LR
  E["extract (pod)"] --> T["transform (pod)"] --> L["load (pod)"]
  D[("/staging<br/>one PVC per run")]
  E -->|writes raw| D
  T -->|writes agg| D
  D -->|reads agg| L
  L -->|50 rows| PG[("external Postgres<br/>managed Connection")]

• leoflow.yaml
• dag.py (essentials)

schema_version: "1.0"
dag_id: etl_duckdb
description: Generate ~1GB, process with DuckDB, load to an external Postgres.
owner: data-eng
tags: [etl]
python_version: "3.11"
dependencies:
  - duckdb==1.4.4
  - psycopg2-binary==2.9.10
staging:
  enabled: true
  size: 5Gi

import os, time
from airflow.sdk import DAG, task

STAGING = os.environ.get("LEOFLOW_STAGING_DIR", "/staging")
ROWS = 70_000_000  # ~1.1 GB as Parquet

@task
def extract() -> dict:
    import duckdb                       # heavy import INSIDE the task (see gotcha)
    raw = f"{STAGING}/raw.parquet"
    duckdb.connect().execute(f"""
      COPY (SELECT i AS id, 'cat_' || (i % 50) AS category,
                   (random()*1000)::DECIMAL(10,2) AS amount
            FROM range({ROWS}) t(i)) TO '{raw}' (FORMAT parquet)""")
    return {"raw": raw}

@task
def transform(meta: dict) -> dict:
    import duckdb
    agg = f"{STAGING}/agg.parquet"
    duckdb.connect().execute(f"""
      COPY (SELECT category, COUNT(*) n, SUM(amount) revenue
            FROM read_parquet('{meta["raw"]}') GROUP BY category)
      TO '{agg}' (FORMAT parquet)""")
    return {"agg": agg}

@task
def load(meta: dict) -> None:
    import duckdb, psycopg2
    rows = duckdb.connect().execute(
        f"SELECT category, n, revenue FROM read_parquet('{meta['agg']}')").fetchall()
    # Managed Connection injected by the agent (AIRFLOW_CONN_<ID>), never in the pod spec.
    dsn = os.environ["AIRFLOW_CONN_ETL_TARGET"]
    with psycopg2.connect(dsn) as conn:
        cur = conn.cursor()
        cur.executemany("INSERT INTO category_revenue VALUES (%s,%s,%s)", rows)

with DAG("etl_duckdb", schedule=None, catchup=False, tags=["etl"]):
    load(transform(extract()))

Measured results

Single-node k3d on a 10-core laptop, real pods, --executor=k8s:

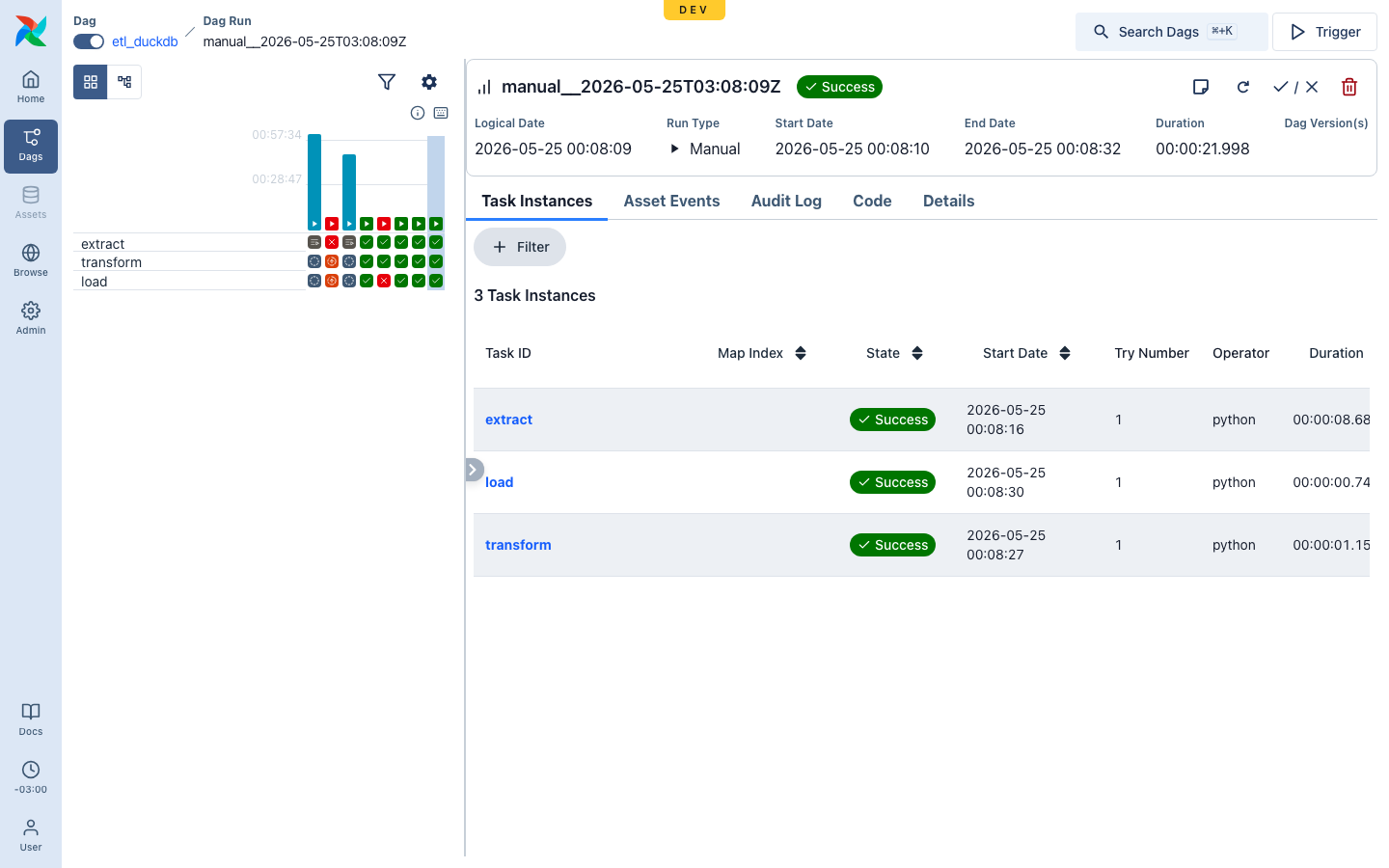

The run detail makes the timing concrete — ~22 s for ~1 GB end to end on a laptop pseudo-cluster, with per-task durations:

DuckDB is vectorized, multi-threaded, and out-of-core, so ~1 GB of Parquet is written in seconds and aggregated in a fraction of a second — within a memory-modest pod. The 1.1 GB lives on /staging, written by extract and read by transform and load — three pods, one disk, verified physically:

$ ls -la /staging      # mounted from the run's PVC
-rw-r--r-- 1000  1,152,463,115  raw.parquet     # ~1.1 GB
-rw-r--r-- 1000          1,940  agg.parquet
-rw-r--r-- 1000          2,800  output.csv

The staging volume lifecycle (ADR 0022)

The per-run PVC is tracked in the metadatabase (staging_volumes: state, created_at, deleted_at, delete_reason) — auditable: when and why each disk was reclaimed.

A GC sweep that cannot resolve a volume’s run never deletes a fresh volume — only ones older than the TTL — so an active run’s pods are never stranded.

Clear + re-run reuses staged data (ADR 0020)

When load failed (external Postgres down), the run was failed so its volume was kept. After fixing the external dependency, clearing only load :

• extract and transform stayed success (not re-run),
• load re-ran alone, re-attached the same PVC and read the existing agg.parquet (no 1 GB regeneration), and loaded successfully.

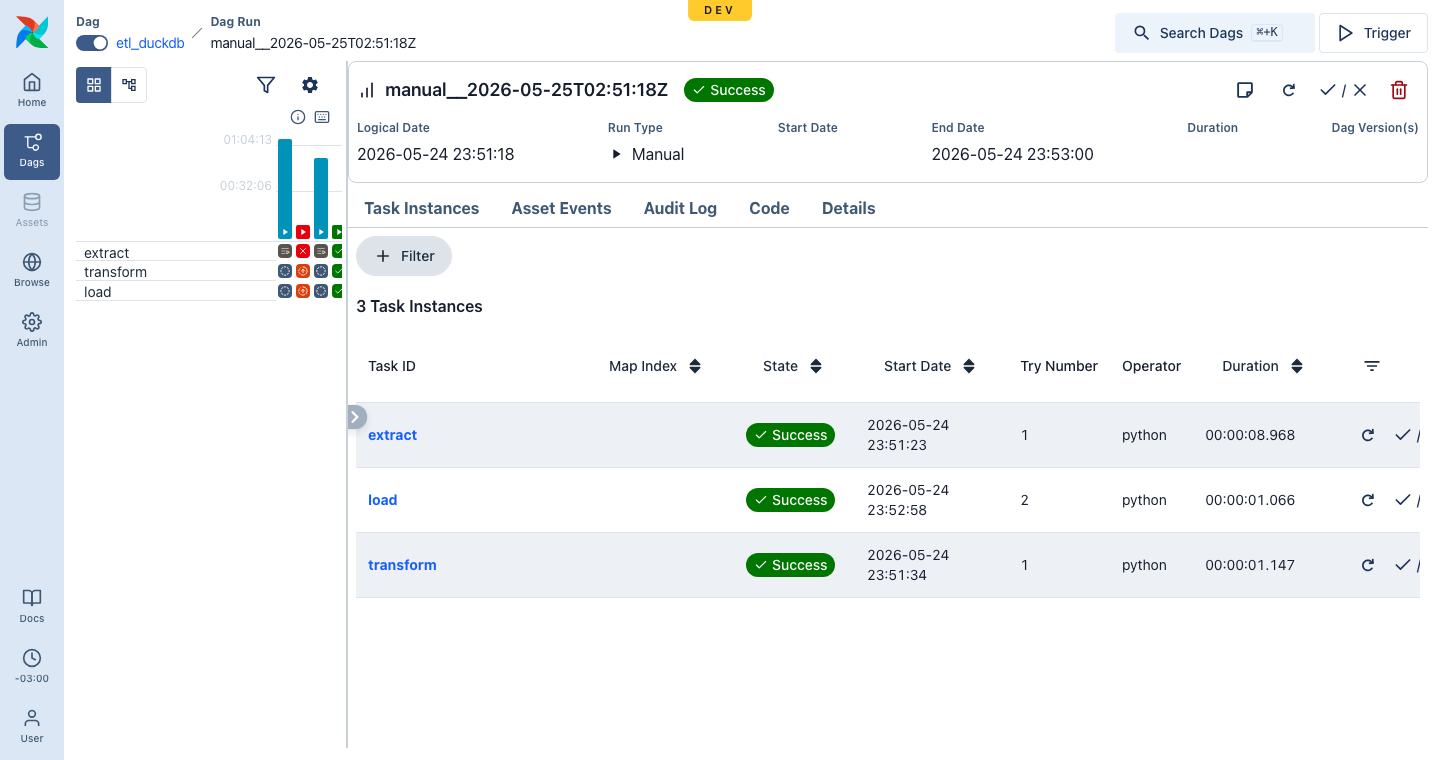

The task instances make it visible — load is on try 2, extract and transform stayed on try 1 (never re-executed):

clear also re-binds the run to the DAG’s current version (the single mutability rule): a re-run after a code/yaml fix picks up the newest image — the last hot-reload in dev, the last deploy in prod.

The external load uses a managed Connection

The load target is a Leoflow Connection (etl_target), created in Admin → Connections — encrypted at rest (ADR 0019) and injected into the pod as AIRFLOW_CONN_ETL_TARGET over an authenticated gRPC pull (ADR 0021), so the secret never appears in the pod spec. The task log confirms it:

load: connecting via managed Connection etl_target
load: loaded 50 rows into EXTERNAL postgres warehouse.category_revenue

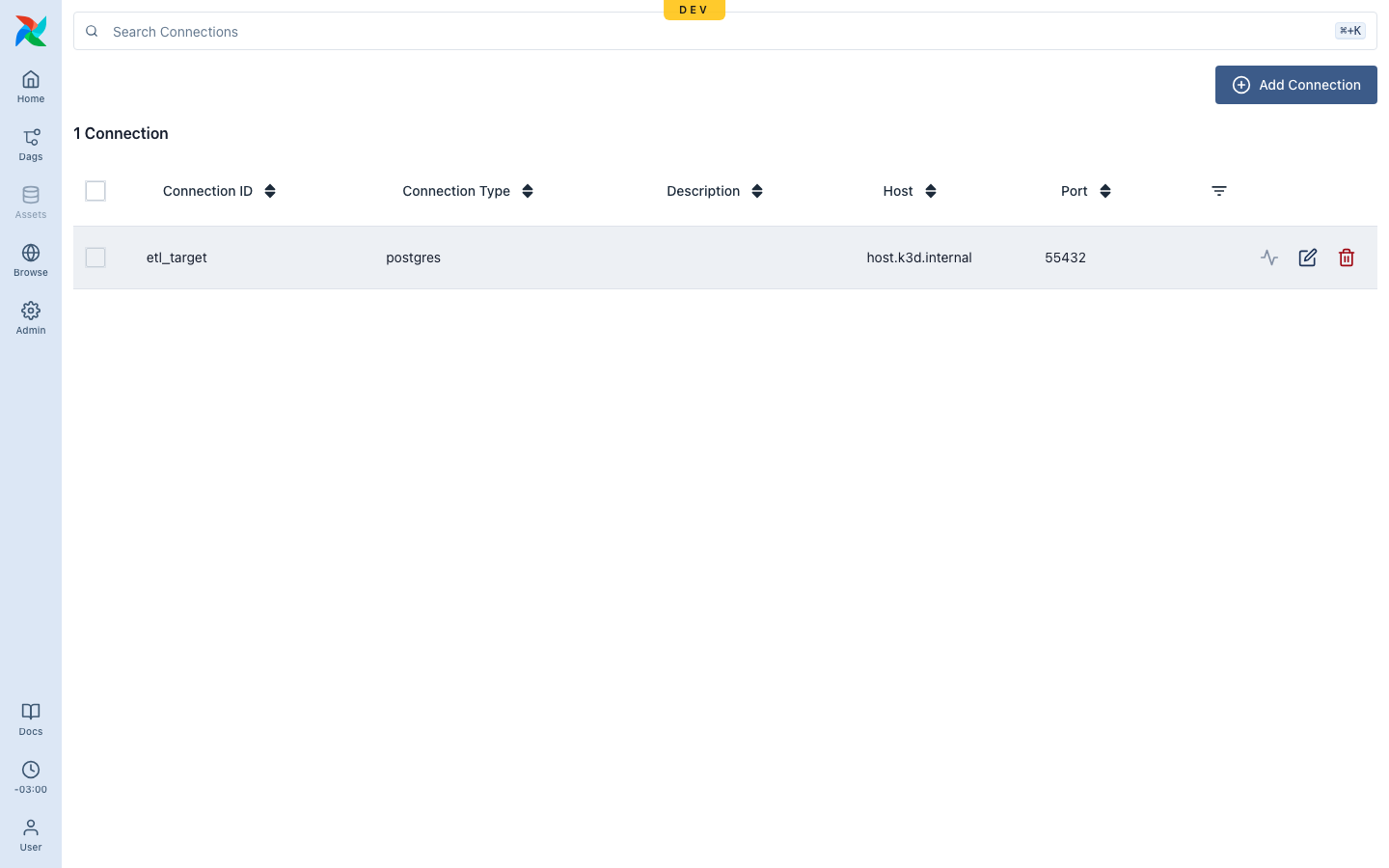

The Connection is managed in the UI (encrypted; the password is never returned):

Each run is traceable to the exact deployment that produced it: the dag_versions entry carries a deployment label (git describe in prod, dev-<timestamp> in dev), surfaced as bundle_version on the version API.

Gotcha: import heavy deps inside the task

import duckdb / import psycopg2 go inside the task functions, not at module top level. The DAG parser imports the module to extract structure and does not have the task image’s dependencies — a top-level heavy import fails parsing (and lights the Import Errors banner).
