The local dev loop

Working on Leoflow from source has two inner loops, and you pick by what you changed:

• Iterating on a DAG (Python/YAML) — use the leoflow lite hot-reload loop: save a file, the watcher recompiles and registers a new version in seconds.
• Iterating on the control plane, agent, or CLI (Go) — use make lite-redeploy: it rebuilds all three binaries, swaps them in lockstep, and reboots leoflow lite.

Neither loop goes near git tag or the release pipeline — that keeps release tags clean.

The leoflow lite hot-reload loop

leoflow lite runs the whole stack locally — control plane, the embedded Airflow UI, and a real executor — against an isolated local database, and hot-reloads on every save. The UI is served on a Lite port (default 8088), marked with the LITE badge, so it never collides with a demo or production instance.

This page is the from-source loop for working on Leoflow itself:

make dev-install            # build + put leoflow / server / agent on your PATH
leoflow lite provision          # provision local dev deps (base image, local DB)
leoflow init dags/my_dag    # scaffold a project
leoflow lite dags/my_dag    # hot-reload at http://localhost:8088 (marked LITE)

(End users install Lite with one command — see Installation.)

Two executors

These numbers are the time from save to the new version registered in the control plane (measured against the lifecycle example).

Choosing an executor

There are only these two — and deliberately no Docker executor (ADR 0015). A Docker-socket executor would mean importing the Docker Go SDK (github.com/docker/docker), which carries an unfixable advisory (Moby AuthZ bypass, GO-2026-4887) reachable from the control-plane binary — it would fail the security gate (ADR 0014) — and talking to the Docker socket is itself a root-equivalent privilege-escalation surface. So Kubernetes is the sole container path (the same KubernetesExecutor locally and in production), and subprocess is a dev-only, unisolated escape hatch. Docker, when installed, is only the engine that hosts the local k3d cluster — never an executor.

Rule of thumb: iterate on DAG logic in subprocess (instant loop), then validate in k8s before deploy — especially anything that uses the staging volume, resource limits, Connections injection, or other pod-only behavior, since those only exist on the Kubernetes path.

The edit → reload → see-it cycle

On save, the watcher recompiles and registers a new DAG version in seconds. But one thing trips people up:

Gotcha: a @task only appears when you call it

In the Airflow TaskFlow API, defining a task is not enough — it joins the graph only when called inside the with DAG(...) block:

@task
def validate() -> None: ...

with DAG("my_dag", ...):
    load(transform(extract()))
    validate()      # ← without this call, `validate` never shows up in the graph

If a task you expected is missing, check that it is called — then reload the page.

When a DAG is broken

Edit a DAG into a parse/compile error (a stray syntax error, a bad import) and the watcher refuses to register the broken version — the last good version keeps serving. The failure surfaces in two places:

1. The dev terminal prints the real traceback, with file and line:

[22:13:52] change detected → reloading …
✗ running parser "python3 -m leoflow_parser": exit status 1
  File "examples/lifecycle/dag.py", line 51
    def broken(  # missing close paren
              ^
SyntaxError: '(' was never closed

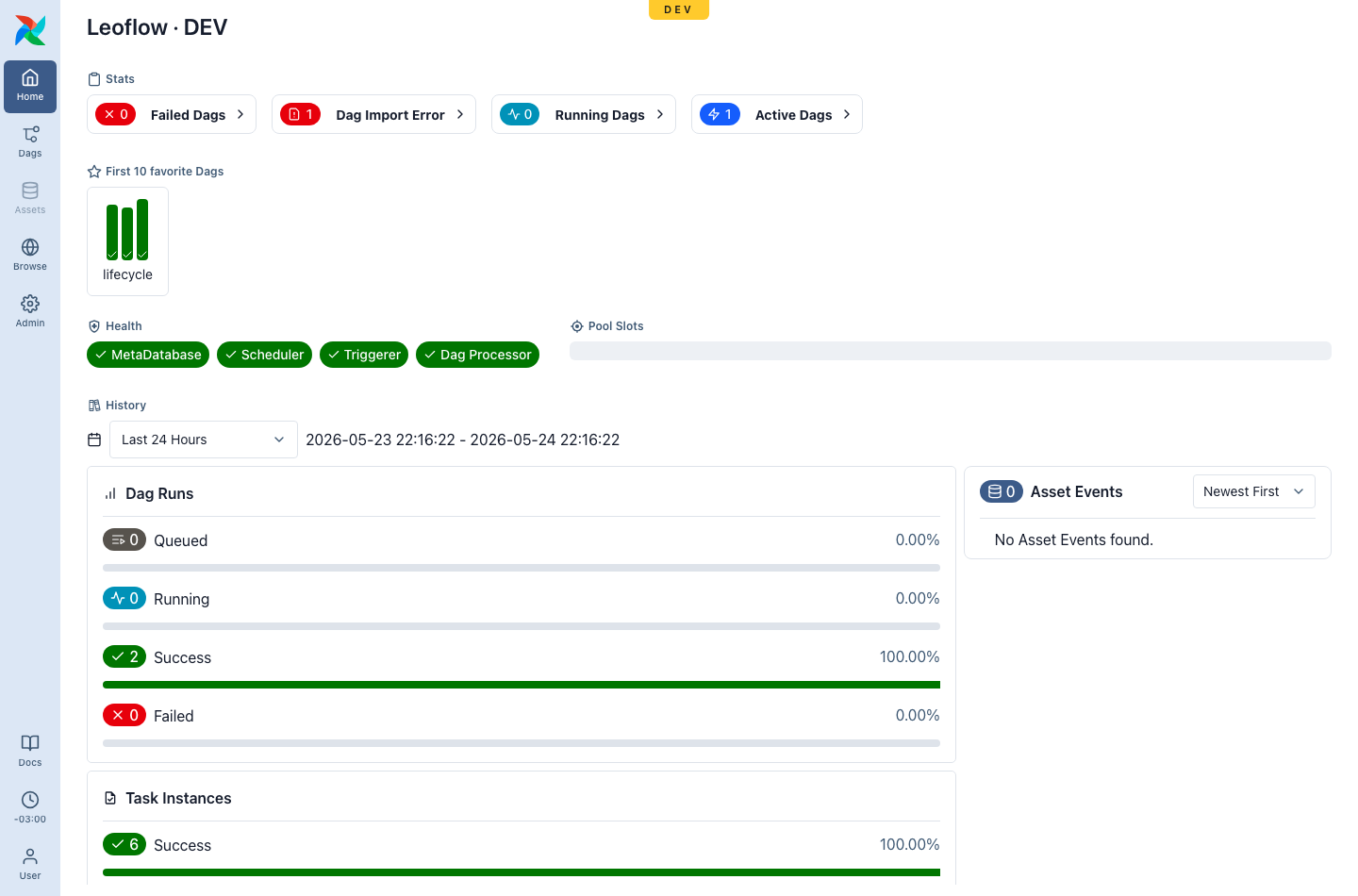

2. The Airflow home lights up its native Dag Import Error banner (the same mechanism real Airflow uses). The stat card turns red with the count:

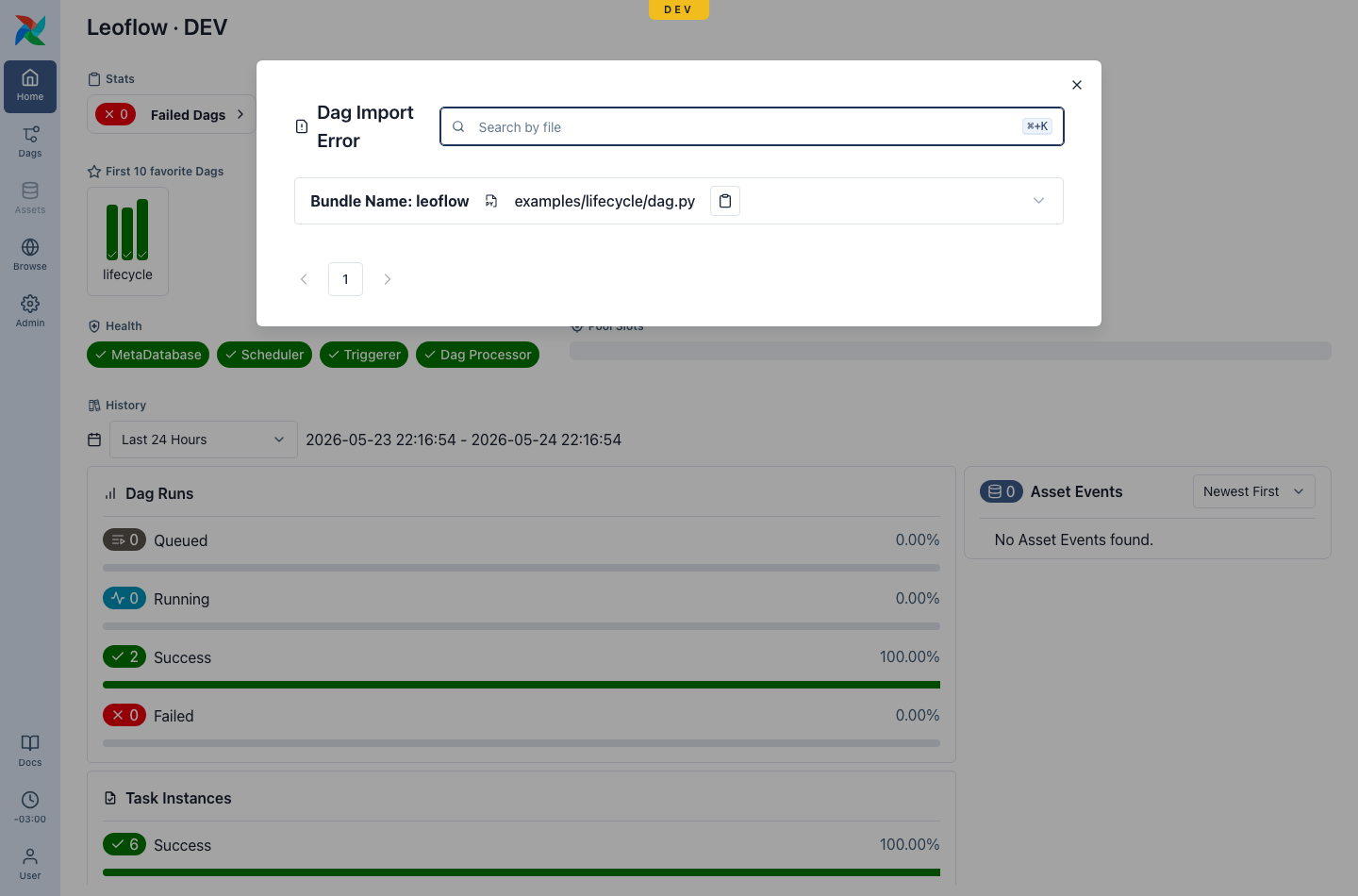

Open it to see the offending file, its bundle, and the full traceback:

Fix the file and save — the watcher registers the next good version and the banner clears automatically (~2 s). No restart, no manual cleanup.

Where to look when something’s wrong

• Edited and nothing changed in the UI? Reload the page (structure does not auto-refresh). If it’s still wrong, check the terminal for ✗.
• A task is missing from the graph? Make sure it is called inside the DAG, then reload.
• Dag Import Error on the home? Your DAG failed to parse — open the banner (or read the terminal) for the traceback, fix it, and save.
• A task ran red? That’s a runtime failure, not a parse error — open the run and read the task logs.

Local credentials — GCP, AWS, Azure

leoflow lite’s subprocess executor runs each task as a local process under your user, inheriting your shell environment and $HOME. So your local cloud credentials just work — no managed Connection needed for local dev:

• GCP — GOOGLE_APPLICATION_CREDENTIALS, or Application Default Credentials (gcloud auth application-default login → ~/.config/gcloud).
• AWS — AWS_ACCESS_KEY_ID/AWS_PROFILE in the env, or ~/.aws/credentials.
• Azure — AZURE_* in the env, or the Azure CLI cache (~/.azure).

The provider SDKs find these through their default credential chains, exactly as if you ran the task by hand — so iterating on a DAG that touches your real cloud accounts needs no extra credential wiring locally.

In Pro / cluster mode, task pods are isolated and do not inherit your local env — there you deliver credentials through managed Connections (see Variables & Connections). Same DAG, two credential sources: local env for the Lite loop, managed Connections in production.

Resilience (self-healing)

Lite keeps its own state consistent without manual cleanup:

• Stale state self-heals on boot. If a reused metadata DB still carries DAGs or import errors from a previous run or workspace, on startup Lite reconciles them against your workspace — deregistering DAGs whose files are gone and clearing orphan import errors (fail-safe: if it cannot list the control plane, it removes nothing).
• A DAG’s per-DAG venv is reclaimed when the DAG is removed (and re-created if it comes back), so virtualenvs don’t pile up on disk.
• Docker wedged? Lite still runs. If Docker is present but unresponsive, Lite falls back to a Docker-free managed Postgres and the subprocess executor instead of aborting — or force it with leoflow lite --postgres managed.

Redeploying Go changes (make lite-redeploy)

The fastest way to validate a change end-to-end against leoflow lite — without going through git tag, the release pipeline, install-smoke, or curl | sh. The script is scripts/lite-redeploy.sh, wired as a Makefile target.

When to use

• Validating a Go change in the control plane, the agent, or the CLI against a real leoflow lite boot.
• Reproducing a runtime bug a user reported, without round-tripping through the release machinery.
• Smoke-testing a fix BEFORE cutting a tag — keeps release tags clean.

This is not an install path. Real users still install via install.sh from a published release (see docs/installation.md).

What it does

1. Builds leoflow, leoflow-server, and leoflow-agent from the current working tree (no git tag needed).
2. Ad-hoc code-signs the binaries on macOS so the OS does not SIGKILL them at exec (Sequoia 14+ refuses to run an unsigned binary that carries com.apple.provenance — silent failure mode with exit 137 and no log output).
3. Stops any running leoflow lite (via the script’s pidfile, with a pkill -f "leoflow lite" fallback).
4. Swaps the binaries in both locations leoflow lite resolves them from — ./bin/ (the repo’s local bin, preferred by resolveBinary in internal/cli/dev.go) and ~/.leoflow/bin/ (the user-install location). Keeping them in lockstep is critical: if only one is updated the stale one silently runs and the dev loop becomes confusing fast (this happened — see the commit that added the script).
5. Starts leoflow lite --postgres managed (a docker-free local Postgres on a Unix socket, so the loop does not collide with any postgres:16 you already have on 5432).
6. Polls /readyz and reports the boot URL + PID + log path.

Usage

make lite-redeploy            # rebuild, restart, tail-ready
PORT=9090 make lite-redeploy  # custom HTTP port
LOG_LEVEL=debug make lite-redeploy   # verbose

After it returns:

# log tail (boot lines, http requests, executor activity)
tail -f /tmp/leoflow-lite.log

# get / rotate the admin password
~/.leoflow/bin/leoflow lite reset-password

# stop
kill "$(cat /tmp/leoflow-lite.pid)"

The two-binary trap (why this script exists)

leoflow lite is a thin orchestrator: it spawns leoflow-server as a subprocess. The Subprocess executor (the dev-only path that runs your Python tasks) in turn spawns leoflow-agent. So a single leoflow lite process tree uses all three binaries:

leoflow lite (CLI / orchestrator)
└── leoflow-server (control plane HTTP + gRPC + scheduler)
    └── leoflow-agent (per-task subprocess; runs the user's dag.py)

If you rebuild only leoflow (the CLI) but leave a stale leoflow-server behind, lite still boots — but the control plane that actually handles requests is the OLD code. Symptom: your code change “doesn’t show up” and you waste 30 minutes second-guessing the test. The script avoids this by rebuilding and swapping all three on every invocation.

How this fits the GitOps flow

The local loop is the inner ring — it catches “does my change boot at all” in seconds, before you push. The release smoke jobs are designed for stable releases; they retract a published tag to a draft on any failure. Using the local loop first keeps release tags clean and avoids the retract / re-cut churn.

If you find yourself cutting a release tag purely to test a Lite change, that is a smell — make lite-redeploy will give you the same validation in seconds without burning a tag number.
