The `leoflow lite` workflow¶

leoflow lite runs the whole stack locally — control plane, the embedded Airflow UI, and a real executor — against an isolated local database, and hot-reloads on every save. The UI is served on a Lite port (default 8088), marked with the LITE badge, so it never collides with a demo or production instance.

This page is the from-source loop for working on Leoflow itself:

make dev-install            # build + put leoflow / server / agent on your PATH
leoflow lite provision          # provision local dev deps (base image, local DB)
leoflow init dags/my_dag    # scaffold a project
leoflow lite dags/my_dag    # hot-reload at http://localhost:8088 (marked LITE)

Login

If you ran leoflow setup (the end-user installer does), Lite enforces a real admin login — recover it with leoflow lite reset-password. A bare source checkout without that config falls back to no-auth (loopback only) with a warning, for a quick loop.

(End users install Lite with one command — see Installation.)

Reaching Lite from another machine

Lite binds loopback (127.0.0.1) by default, so the UI opens on the machine running it. To reach it from your internal network/VPN (e.g. a headless box), pass --host 0.0.0.0 — only with a configured admin login (a no-auth instance is always forced back to loopback) and only on a trusted network. Otherwise, an SSH tunnel works without exposing anything: ssh -L 8088:localhost:8088 <host>.

Edit in the browser

Lite includes a small built-in code editor (Python/YAML highlighting, file tree) — click the IDE button in the UI, or open /ide. See The Lite web editor.

Removing a DAG

Two ways to deregister a DAG from the Lite registry:

Delete the project directory — the watcher's per-tick set-diff notices the project vanished from disk and calls the control plane's hard-delete endpoint (cascades versions, runs, task instances, XCom). Logged on stderr: ✗ removed dag "my_dag" from registry (folder gone).
leoflow lite forget <dag_id> — explicit deregister via the Lite DB. Use it to remove a DAG without touching the source files (e.g. paused work on an example you'll come back to). Flags: --all (deregister everything), --dry-run (print what would be removed).

Both paths go through the same FK cascade — versions, runs, TIs, XCom are all dropped atomically with the dags row.

Per-DAG venvs (subprocess executor)

Each DAG gets its own virtualenv under ~/.leoflow/dev/venvs/<dag_id>/, so editing one project's dependencies: only re-runs pip for that DAG — other DAGs' venvs are untouched. Two DAGs can pin conflicting versions of the same package without interfering. If uv is on PATH, Lite uses it for the install (5–10× faster cold runs); otherwise it falls back to pip from the venv. The k3d executor is unaffected — each DAG already ships in its own image.

Two executors¶

`--executor`	What it does	Reload to a new version
`k8s` (default)	Real pod-per-task on a dedicated, isolated k3d cluster (`leoflow-dev`); rebuilds the DAG image each change — highest fidelity.	~8 s (code-only change, layer cache warm)
`subprocess`	Tasks run unsandboxed on the host venv; no image build — the fast inner loop.	~1–2 s

These numbers are the time from save to the new version registered in the control plane (measured against the lifecycle example).

Choosing an executor¶

There are only these two — and deliberately no Docker executor (ADR 0015). A Docker-socket executor would mean importing the Docker Go SDK (github.com/docker/docker), which carries an unfixable advisory (Moby AuthZ bypass, GO-2026-4887) reachable from the control-plane binary — it would fail the security gate (ADR 0014) — and talking to the Docker socket is itself a root-equivalent privilege-escalation surface. So Kubernetes is the sole container path (the same KubernetesExecutor locally and in production), and subprocess is a dev-only, unisolated escape hatch. Docker, when installed, is only the engine that hosts the local k3d cluster — never an executor.

	`subprocess`	`k8s` (k3d / prod)
Speed (per task, reload)	fastest — host process, no build	slower — image build + pod schedule
Isolation	none (shared host venv)	real pods (limits, RBAC)
Pro fidelity	low	high (identical path to prod)
Moving parts that can break	few (just the venv)	more (cluster, scheduler, registry, PVC)
Shared `/staging` volume (ADR 0022)	not provided (`LEOFLOW_STAGING_DIR` unset; tasks have direct host-disk access instead)	yes — per-run PVC at `/staging`, `LEOFLOW_STAGING_DIR` set, GC'd

Rule of thumb: iterate on DAG logic in subprocess (instant loop), then validate in k8s before deploy — especially anything that uses the staging volume, resource limits, Connections injection, or other pod-only behavior, since those only exist on the Kubernetes path.

The edit → reload → see-it cycle¶

On save, the watcher recompiles and registers a new DAG version in seconds. But one thing trips people up:

The page does not auto-refresh DAG structure — reload it

The hot reload is of the backend (recompile + register), not of the open browser tab. A new version (added/removed task, changed code) appears in the control plane in ~1–2 s, but the open page keeps showing the old structure until you reload it (Cmd/Ctrl-R).

What changed	Updates in the open page automatically?
DAG structure / version — task added/removed, code edited	❌ No — reload the page
Run state — a task going green/red during a run	✅ Yes — Airflow's auto-refresh handles it

Gotcha: a `@task` only appears when you call it¶

In the Airflow TaskFlow API, defining a task is not enough — it joins the graph only when called inside the with DAG(...) block:

@task
def validate() -> None: ...

with DAG("my_dag", ...):
    load(transform(extract()))
    validate()      # ← without this call, `validate` never shows up in the graph

If a task you expected is missing, check that it is called — then reload the page.

When a DAG is broken¶

Edit a DAG into a parse/compile error (a stray syntax error, a bad import) and the watcher refuses to register the broken version — the last good version keeps serving. The failure surfaces in two places:

1. The dev terminal prints the real traceback, with file and line:

[22:13:52] change detected → reloading …
✗ running parser "python3 -m leoflow_parser": exit status 1
  File "examples/lifecycle/dag.py", line 51
    def broken(  # missing close paren
              ^
SyntaxError: '(' was never closed

2. The Airflow home lights up its native Dag Import Error banner (the same mechanism real Airflow uses). The stat card turns red with the count:

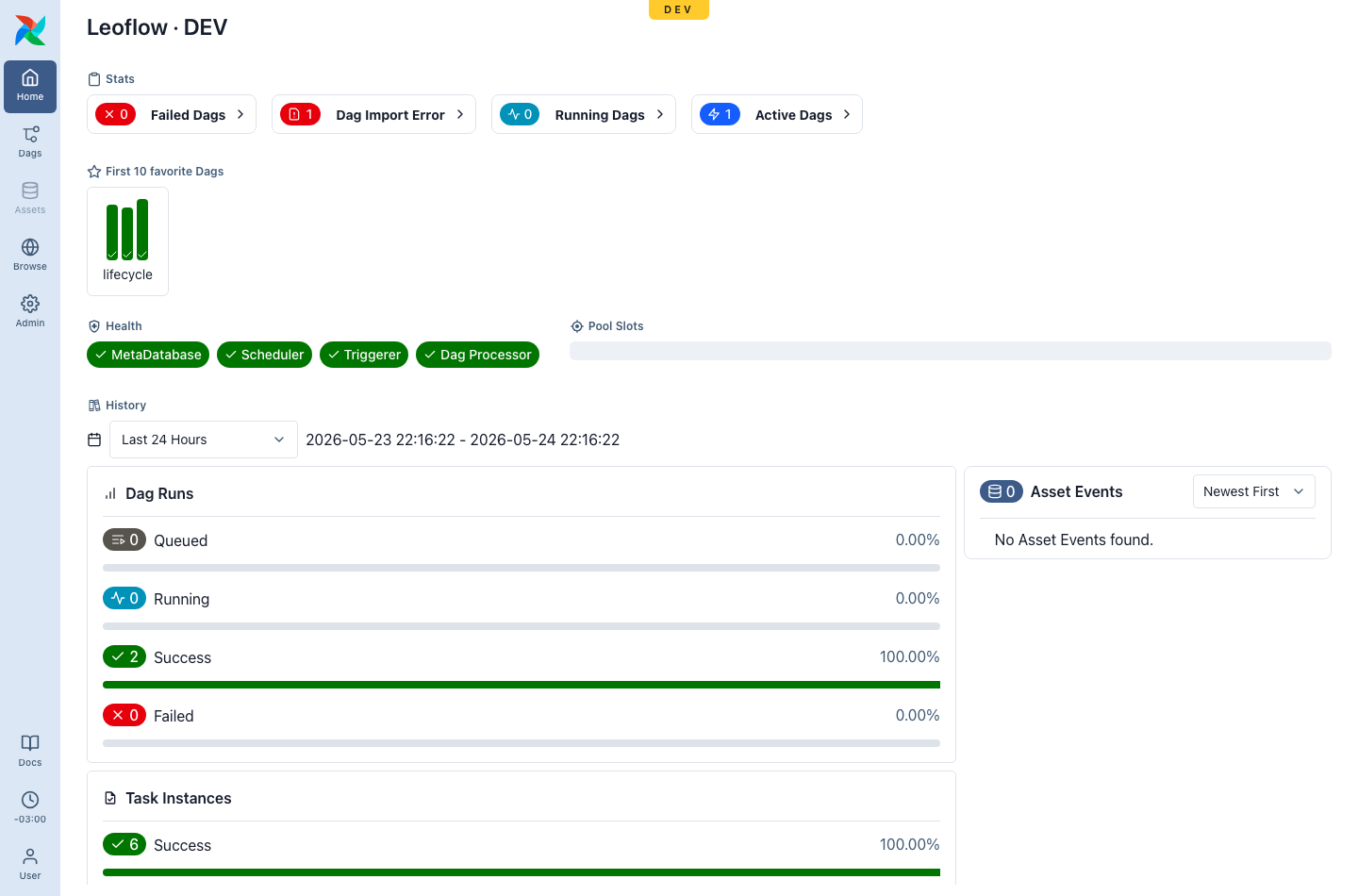

The home dashboard showing the red "Dag Import Error 1" card

Open it to see the offending file, its bundle, and the full traceback:

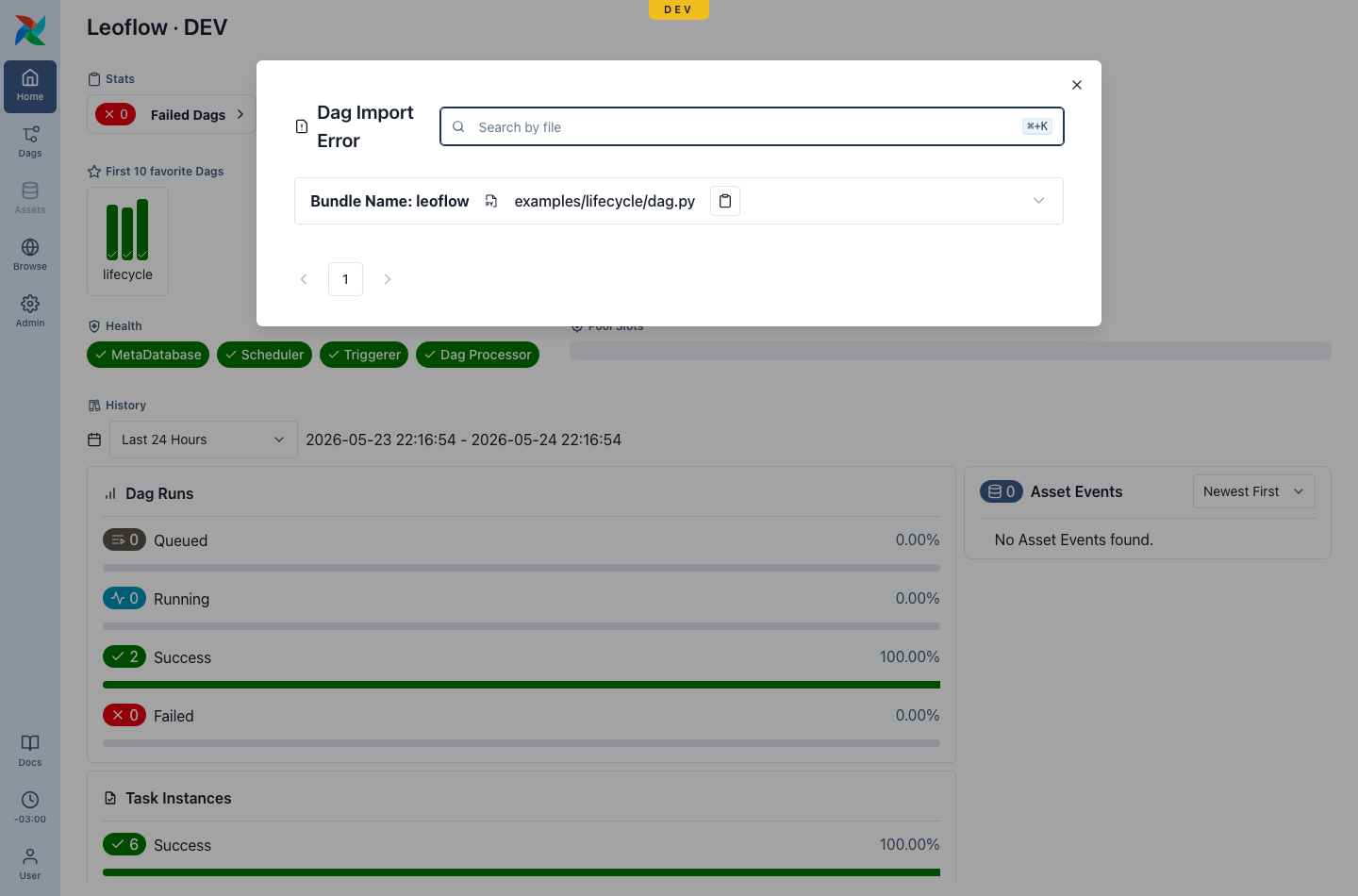

The Dag Import Error detail listing the broken file and its traceback

Fix the file and save — the watcher registers the next good version and the banner clears automatically (~2 s). No restart, no manual cleanup.

Lite vs Pro

This banner is driven by a control-plane feed (GET /api/v2/importErrors) and works in any environment. In Pro you rarely see it: DAGs are immutable artifacts and a broken DAG fails leoflow compile in CI before it is ever deployed — CI is the safety net there. In Lite, where you edit live, the leoflow lite watcher publishes the error so you catch it in the UI, not only the terminal.

Where to look when something's wrong¶

Edited and nothing changed in the UI? Reload the page (structure does not auto-refresh). If it's still wrong, check the terminal for ✗.
A task is missing from the graph? Make sure it is called inside the DAG, then reload.
Dag Import Error on the home? Your DAG failed to parse — open the banner (or read the terminal) for the traceback, fix it, and save.
A task ran red? That's a runtime failure, not a parse error — open the run and read the task logs.
